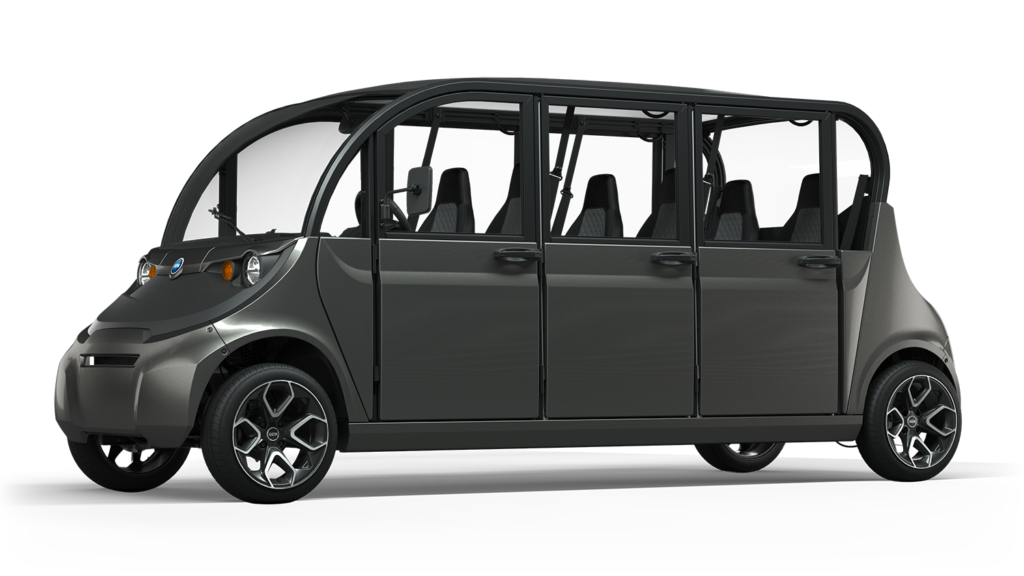

GEM e6
GEM e6

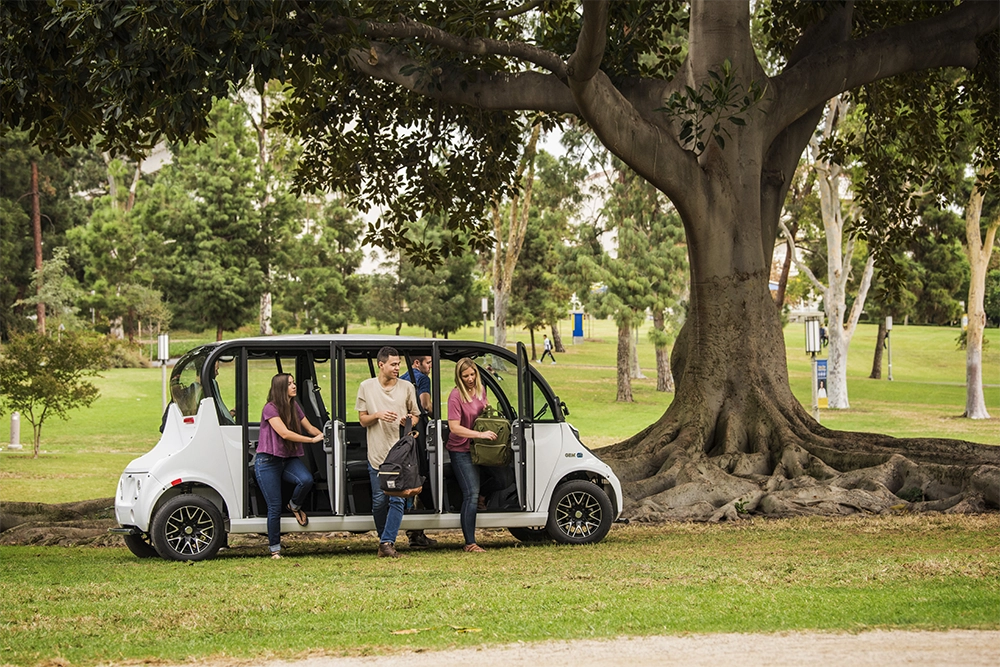

Our ideal people mover is a great alternative to SUVs or vans.
The GEM e6 is the Future of Electric Shuttles.
With enhanced safety and comfortable seating for six, the GEM e6 is in an EV shuttle class of its own.
1-6
Seating
78 mi
Range up to between charges*
167 in
Length
55.5 in
Width
*GEM model, battery, payload and terrain will impact range
Comfortable
- Adjustable front bucket seats give passengers a personalized feeling of comfort.
- Experience a smooth ride on all kinds of terrain with almost 6″ of suspension travel.
- Seat a 6’8″ passenger comfortably in the spacious cab with 43″ of available legroom.
- Durable, non-slip flooring.
- Make effortless turns with optional Electronic Power Steering.
- Drive confidently with adjustable tilt steering that’s easily adjusted to your preferences.
- Adventure year-round by adding doors. GEM’s door seal design and weather resistant seats are engineered for a weather-tight cab.
Safe
- GEM vehicles are street-legal on roads up to 35 mph in most states.
- Ensure street-legal security on the road with three-point seat belts.
- Travel roads confidently with street tires and an automotive glass windshield that offers protection from the elements.
- Alert other drivers of your next move with LED brake lights and turn signals.
- Regenerative braking, back-up warning signals and an integrated back-up camera all come standard.
- GEM vehicles feature an Occupant Protection System (OPS) that is roof crush certified to SAE J2358 Standards.
- GEM vehicles have safety features that are approved by the US Department of Transportation.
Sustainable
- 100% electric powered.
- A sustainable solution that doesn’t sacrifice quality, GEM vehicles can seat up to six people.
- Choose from an array of battery options that vary by range, cost, and level of maintenance.
- 1 kW onboard charger that plugs into any 110V outlet
GEM e6 Specs & Dimensions
Length
167 in (424 cm)
Width
55.5 in (141 cm)
Height
73 in (186 cm)
Turning Radius
220 in (559 cm)
Wheelbase
134 in (340.4 cm)
Front Suspension
MacPherson Strut
5.6 in (14 cm) travel
Rear Suspension
Independent Trailing Arm
6 in (15 cm) travel
Wheels
Standard 13 in DOT street-rated 155/80 R13
Ground Clearance
8 in (20.3 cm)
Dry Weight
1,696 lbs (769 kg)
GVW
3,000 lbs (1,361 kg)
Payload Capacity
1,304 lbs (591 kg)
Maximum Cargo Capacity
330 lbs (150 kg)
Motor Size
6.5 kW/ 8.7 HP
Motor Type
Battery
Flooded, maintenance-free distance AGM, or Li-ion
Top Speed
25 mph (40 kmh)
Brakes (Front/Rear)
Charger
Onboard 1 kW charger standard included
Make GEM e6 Yours
With hundreds of configurations available, you can build a GEM specifically suited to your style and application.

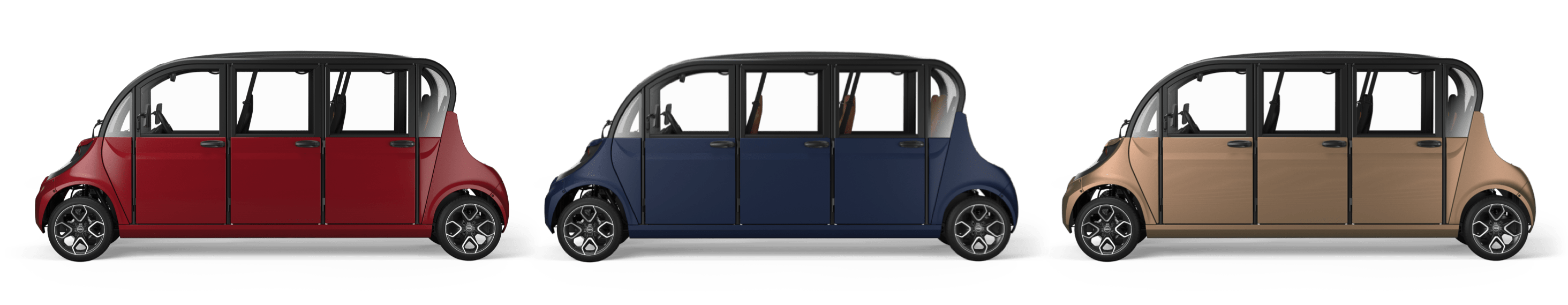

Bold Paint Colors
GEM is available in seven automotive-grade paint colors. In addition to black and white, choose gloss finishes in Sunset Red, Titanium Metallic, Radiant Green, Arctic Frost or Tidal Blue.

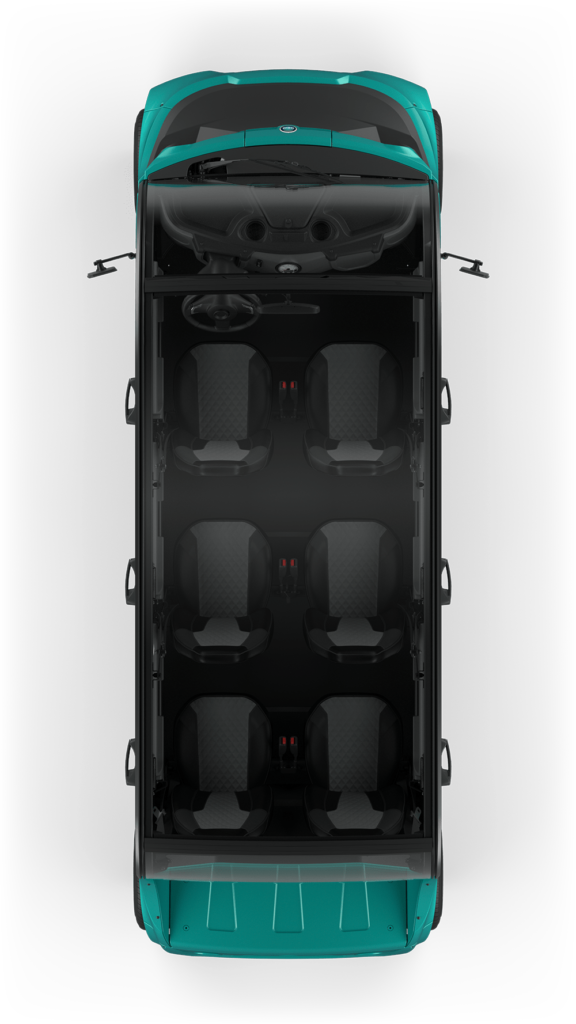

Panoramic Sky Roof

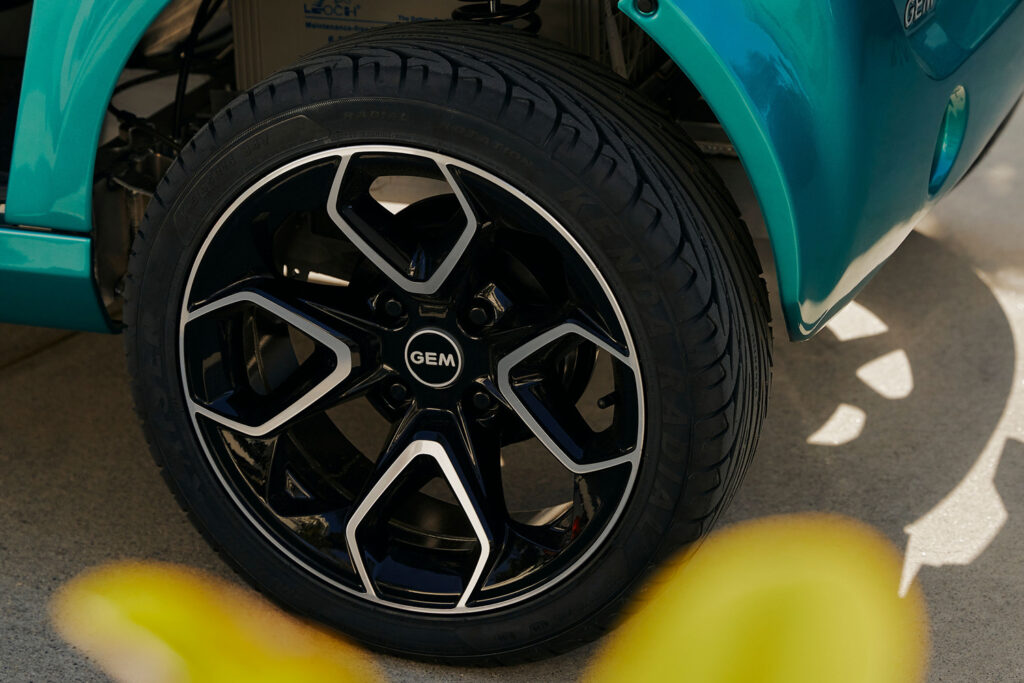

Sport Rims & Tires
GEM e6 Luxury Comforts

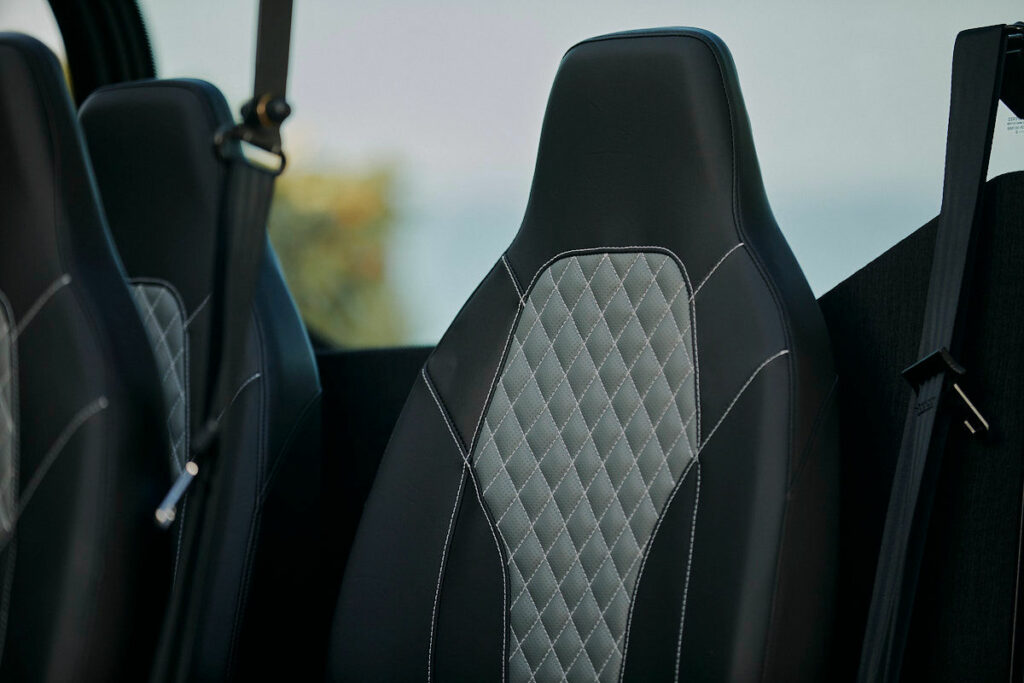

Individual bucket seats with high backs are ergonomic for ultimate comfort. A new seat pattern is highlighted by three high-end vegan leather fabrics to introduce appealing textures that elevate the style of the seat. The seats are offered in three new color options to add to the customization of each GEM. The weather-resistant, luxe seats can be covered in Beechwood Tan, Avalanche Gray and Black or Beachwood Tan and Black color combinations.
The Rockford Fosgate audio system provides superior sound quality. The Element ReadyTM speakers are IPX6 rated meaning they are built to withstand salt, water, dust and UV—all while delivering outdoor audio without needing an amplifier. Passengers experience high-performing surround sound with two speakers in front and two in back. Controlled by an in-dash tuner that is Bluetooth and audio-in compatible, these speakers are built to broadcast audio from your device, or use the built-in AM/FM tuner for the radio.
LED feature lighting adds lights under the dash and beneath the seats to illuminate the floor of your GEM. The configurable lights can easily be switched between a brilliant blue ambient light, or a true white task light.

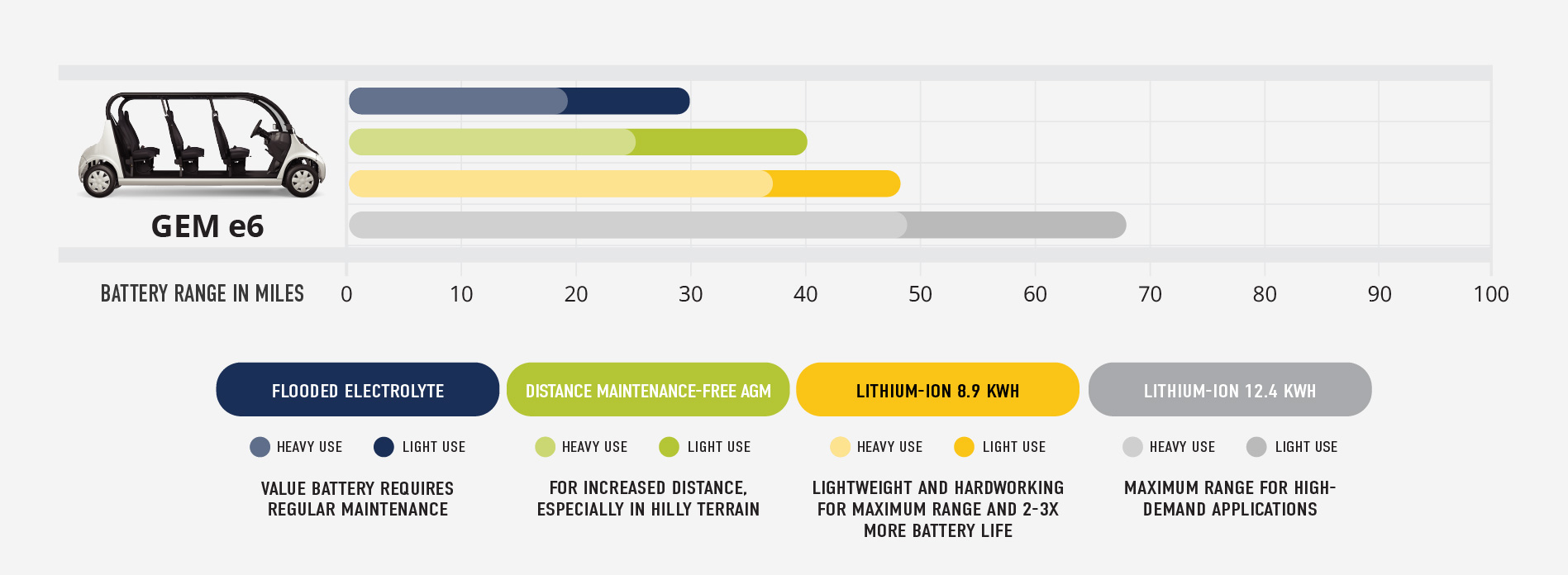

GEM e6 Battery Options
Three battery packages allow you to choose exactly which batteries fit your driving needs the best. Whether you only run short errands or shuttle people all day, GEM has a battery option for everyone.
*Range based on typical, average use. GEM model, payload, battery type, and terrain will impact range.
