The Safer, Quicker and More Reliable Ambulance for Local EMS Response
The GEM Ambulance is the only pedestrian-friendly, indoor-capable and street-legal ambulance designed to safely transport medical professionals, equipment and patients in localized settings. This purpose-built electric emergency vehicle operates in crowds, tight spaces, indoors and on roads up to 35 mph, offering a quiet, emission-free alternative to traditional ambulances. Perfect for college campuses, resorts, athletics, corporate facilities and industrial sites, the compact emergency vehicle maintains DOT compliance and medical equipment certification while ensuring safe crowd navigation. With zero tailpipe emissions, the GEM Ambulance protects patients, medical professionals and bystanders during emergency situations.
EMS Skids
Red Light, Siren and Horn
Public Address System
Designed with Professional Emergency Medical Equipment
The GEM Ambulance integrates industry-leading emergency medical equipment from QTAC® EMS and MTECH Inc., providing paramedics and EMTs with professional-grade skids in a compact electric ambulance. Developed in partnership with QTAC®, a leader in emergency response equipment for UTVs and trucks, the skids deliver superior performance compared to traditional ambulance equipment or UTV medical kits.
- Secure ambulance patient transport via longboard, stokes basket or ambulance stretcher
- EMT attendant seating positioned next to patient for care during transport
- Optional storage with roll-out access and locking system (EMS-R model)
- Lightweight, removable mounting system for vehicle reconfiguration
- PolyTough™ construction, a highly durable, UV-resistant polyethylene known for rugged performance in harsh conditions
- Optional oxygen bottle and IV mounts for advanced patient care (EMS-R model)
- Emergency medical skids mounted between wheels for superior stability unlike UTVs or carts
- Two-year warranty on EMS skids to match GEM vehicle warranty

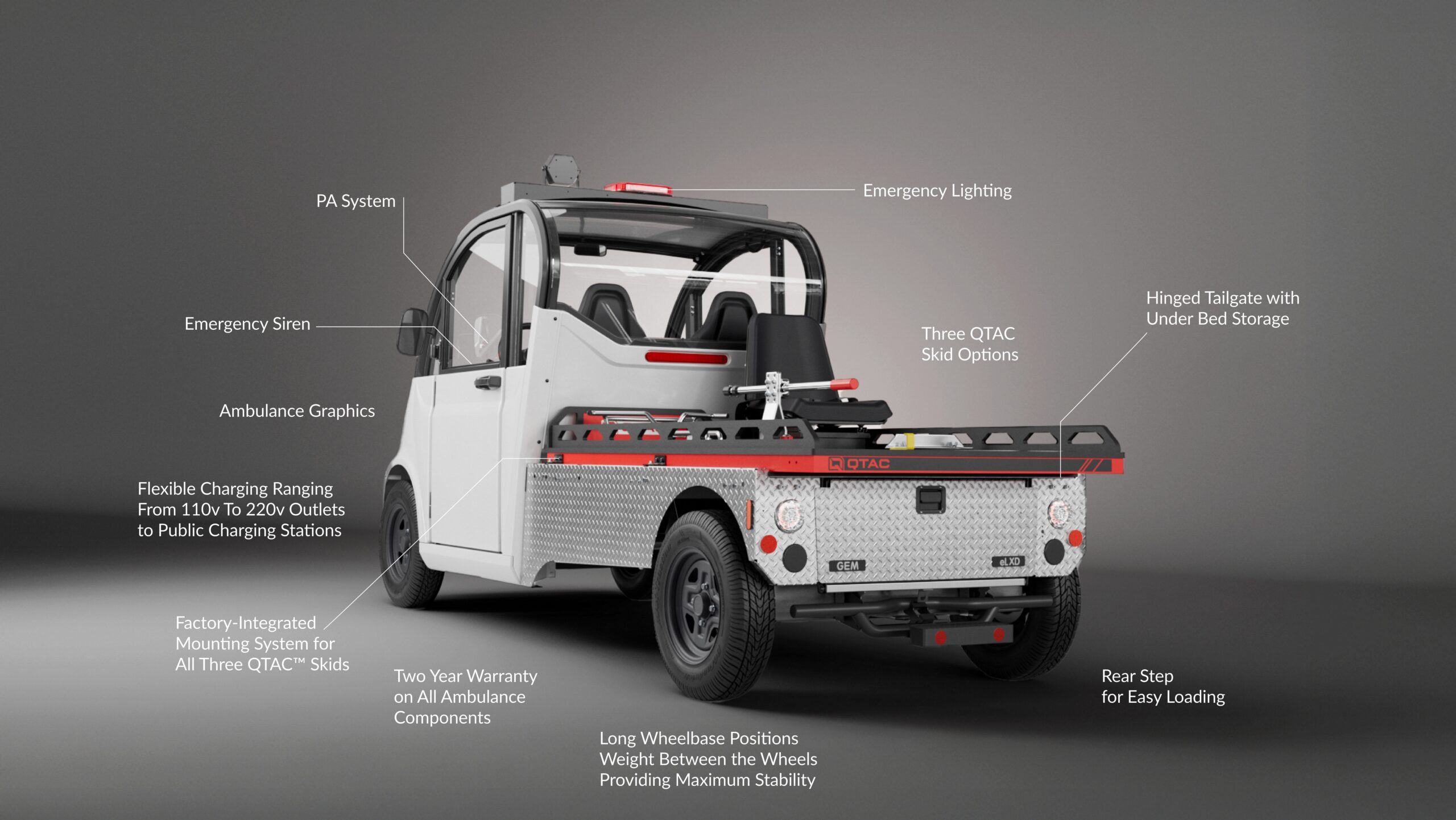

Advanced Safety & Emergency Response Features
The GEM Ambulance delivers superior advantages for pedestrian environments compared to traditional emergency UTVs, medical carts and other internal combustion emergency vehicles. This street-legal electric ambulance includes professional emergency equipment and safety features designed for crowd-safe medical response in enclosed and pedestrian-heavy environments.
- Red emergency vehicle warning lights with 360-degree coverage and SAE Class 1 compliance
- Siren system with four selectable patterns and decibel levels up to 124
- Medical vehicle public address (PA) system with digital amplifier for high-quality audio
- Backlit handheld control mounted within reach of driver and passenger
- Professional ambulance decal

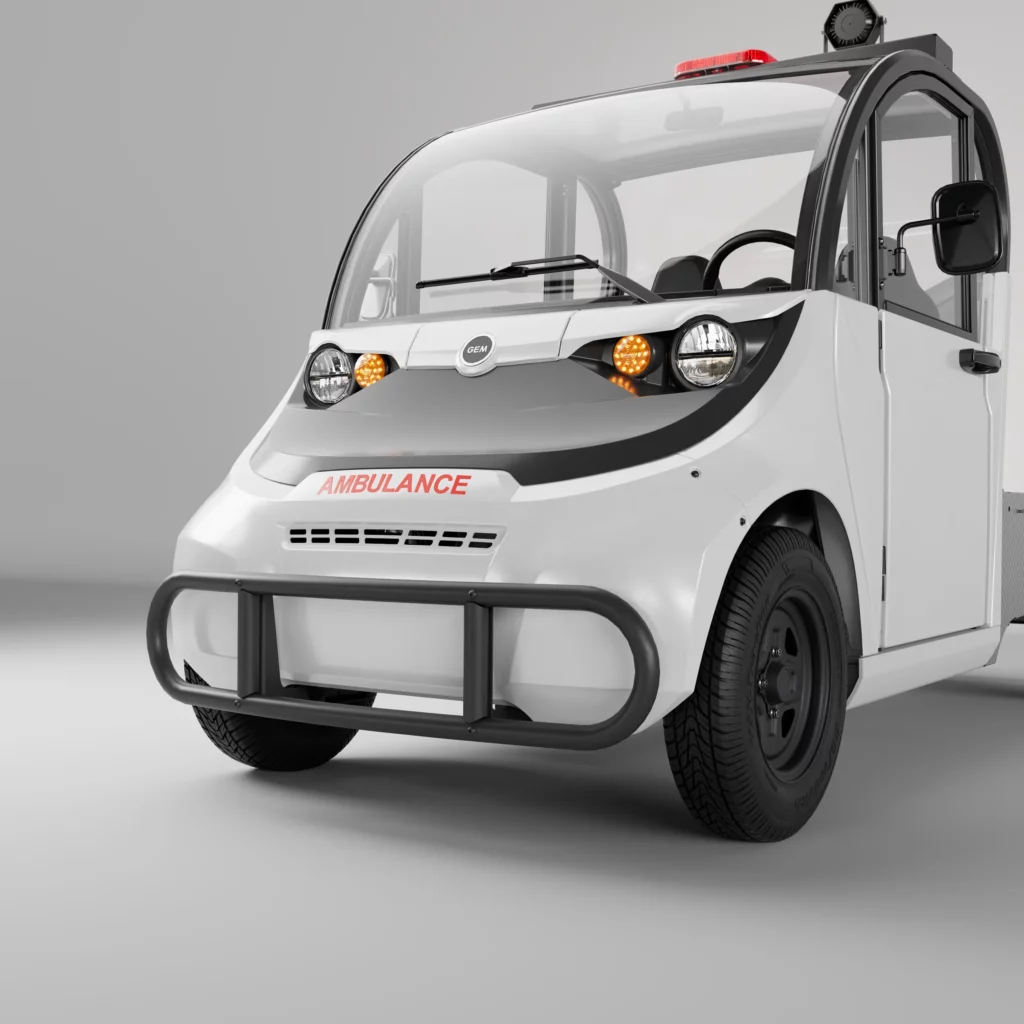

- LED headlights and taillights with turn signals and pedestrian noise emitter
- 360-degree sightlines and backup camera for driver awareness
- Controlled top speed of 25 mph for safe emergency response
- Three-point seat belts and bucket seats for crew security
- Low-deck height design with rear step for easy patient and personnel access
Built for Localized EMS Response
The GEM Ambulance provides emergency medical transport for venues and facilities where traditional ambulances cannot safely operate. This electric emergency vehicle is designed for confined spaces, crowd-dense environments and facilities requiring specialized medical coverage.
- Stadium and Arena Medical Services
- Outdoor Events and Convention Centers
- Resort and Amusement Park Safety Coverage
- College Campus Emergency Services
- Corporate Facility Medical Support
- Airport and Railyard Emergency Response
- Military Installations and Federal Facilities
- Planned Communities
- Industrial and Warehouse Sites
The GEM Ambulance
| KEY SPECIFICATIONS | |
|---|---|
| Batteries | Maintenance-Free Distance AGM or Li-Ion |
| Charger | AGM: Onboard 1 kW or Li-Ion – 4 Hour Fast Charger |
| Top Speed | 25 mph (40 kmh) |
| Max Estimated Range* | 41 miles w/ std AGM, 86 miles w/ 16 kWh Li-Ion |
| Length x Width x Height | 167 in (424 cm) X 55.5 in (141 cm) X 73 in (186 cm) |
| Turning Radius | 220 in (559 cm) |
| Wheelbase | 114 in (290 cm) |
| Front Suspension | MacPherson Strut 5.6 in (14 cm) Travel |
| Rear Suspension | Independent Trailing Arm 6 in (15 cm) Travel |
| Wheels | Standard 13 in DOT Street-Rated 155/80 R15 |
| Ground Clearance | 8 in (20.3 cm) |
| GVW | 3,000 lbs (1,361 kg) |
| Brakes (Front/Rear) | Disk/Hydraulic Drum |
| QTAC Skid | Choose between R, F, RG Options |
| Siren | Standard |
| PA System | Standard |
| Ambulance Graphics | Standard |
| Emergency Light | Standard |
| Doors, Heat, Fan, Defrost | Optional |
| Electronic Power & Tilt Steering | Optional |
| Exterior Colorg | White |

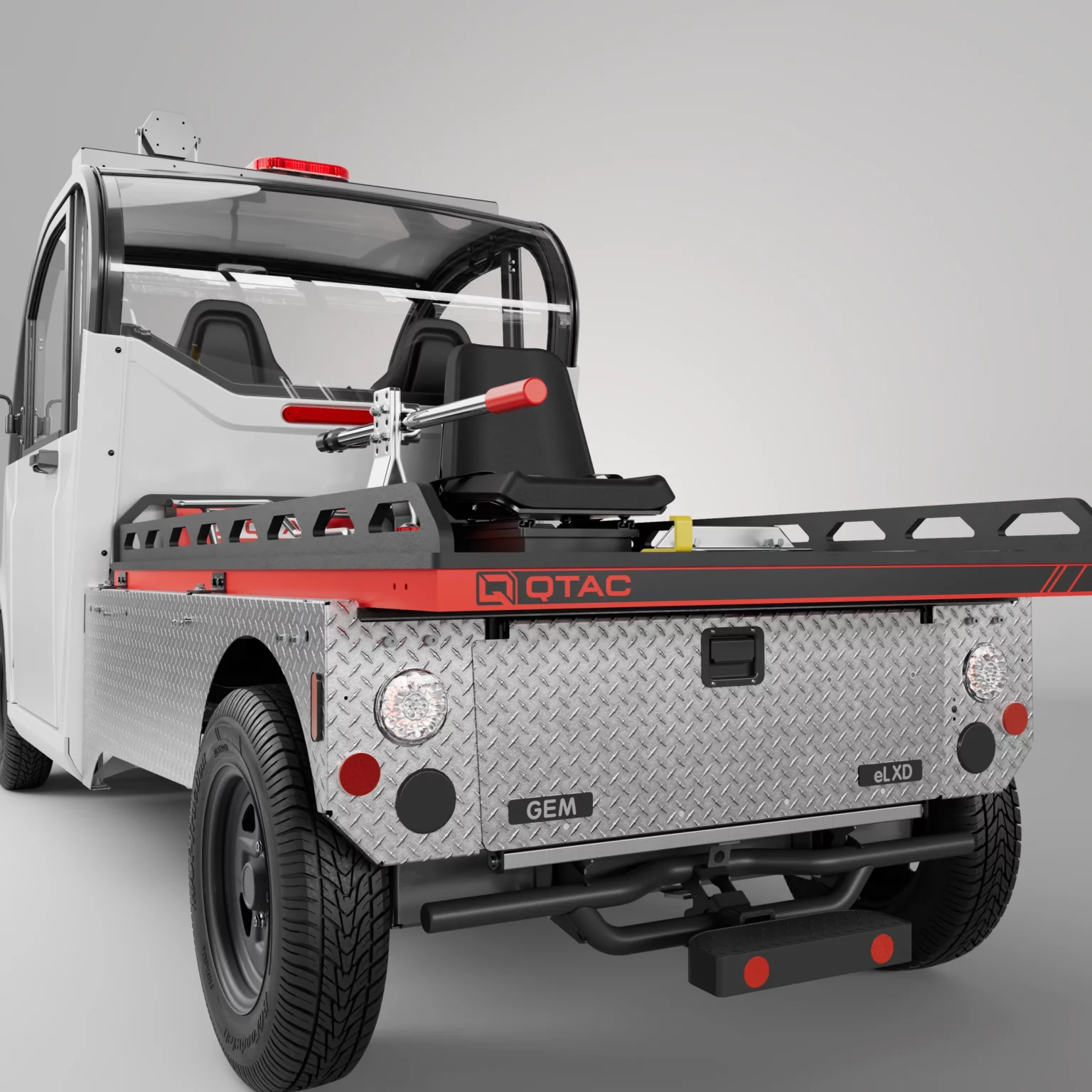

Three Industry-Leading QTAC Skid Options

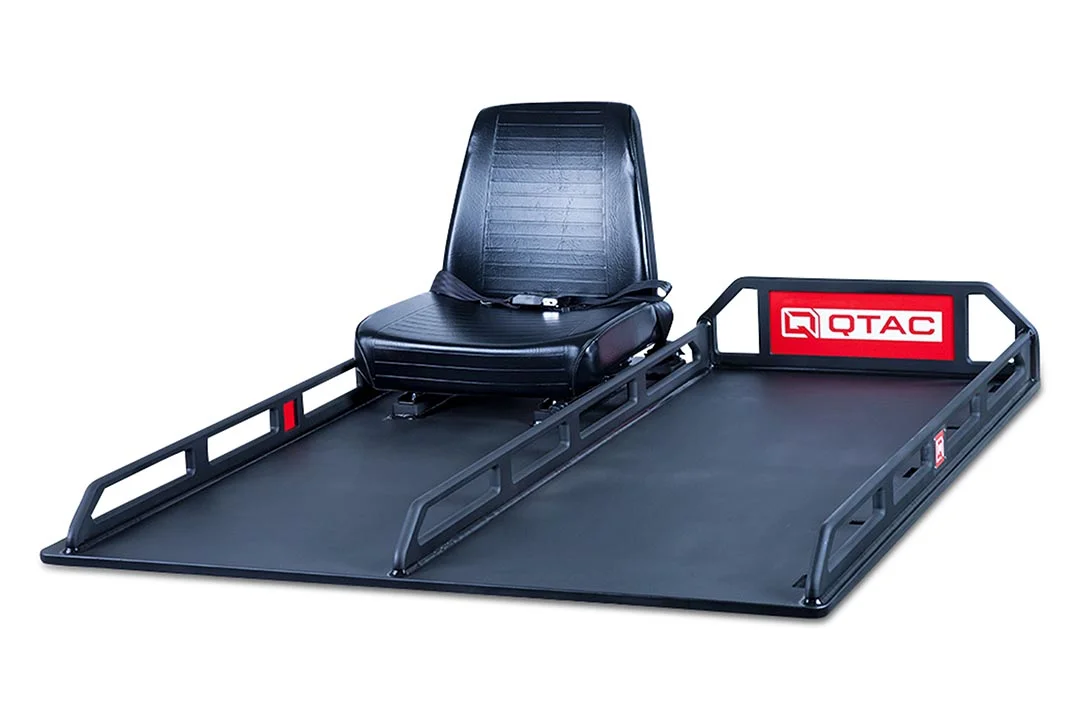

| EMS-F | |
|---|---|
| Weight 120 lbs (54.4 kg) | |
| PolyTough™ Deckboard Standard | |
| Side Handles for Attendant & Securing Skid to Vehicle Standard | |
| Adjustable Attendant Seat with Lap Belt Standard | |
| Adjustable Foot Stop for Attendant N/A | |
| Apparatus Fitment Stokes Basket or Long Board | |
| Gurney Mount COT System N/A | |
| L Track to Secure Medical Gear N/A | |
| IV Pole N/A |

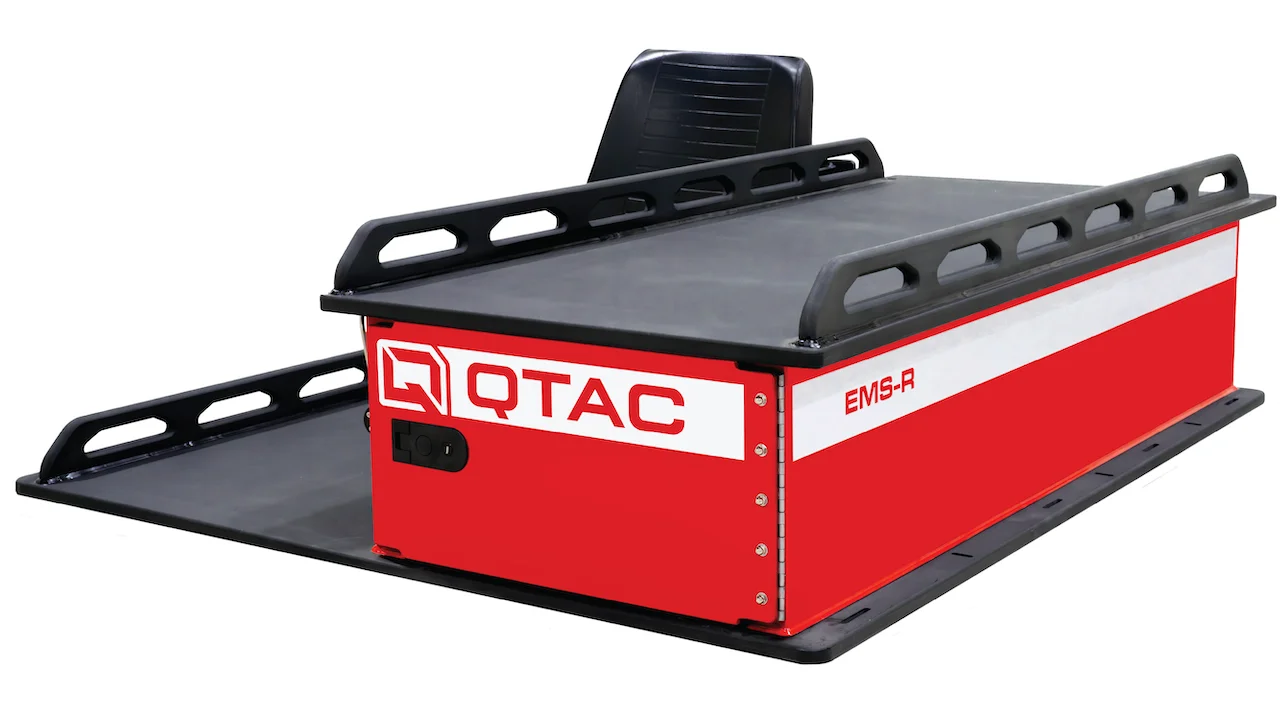

| EMS-R | |
|---|---|
| Weight 145 lbs (65.8 kg) | |
| PolyTough™ Deckboard Standard | |
| Side Handles for Attendant & Securing Skid to Vehicle Standard | |
| Adjustable Attendant Seat with Lap Belt Standard | |
| Adjustable Foot Stop for Attendant N/A | |
| Apparatus Fitment Stokes Basket or Long Board | |
| Gurney Mount COT System N/A | |
| L Track to Secure Medical Gear N/A | |
| IV Pole Optional |

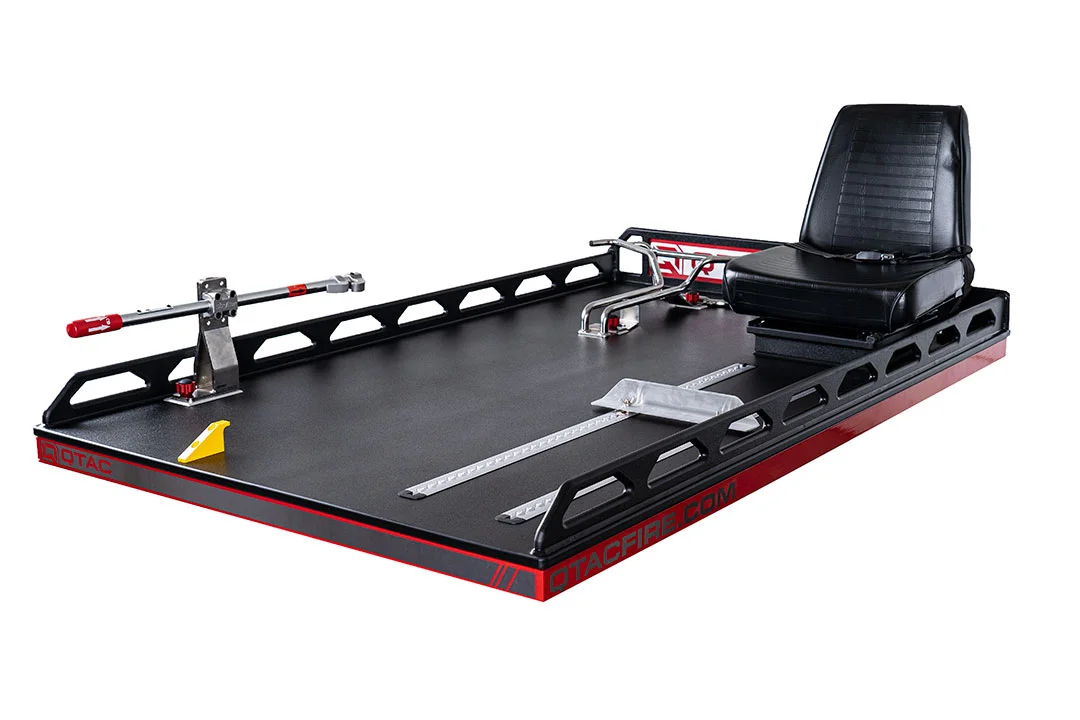

| EMS-RG | |
|---|---|
| Weight 222 lbs (100.7 kg) | |
| PolyTough™ Deckboard Standard | |
| Side Handles for Attendant & Securing Skid to Vehicle Standard | |
| Adjustable Attendant Seat with Lap Belt Standard | |
| Adjustable Foot Stop for Attendant N/A | |
| Apparatus Fitment Stokes Basket, Long Board, or Standard Gurney | |
| Gurney Mount COT System Standard | |
| L Track to Secure Medical Gear Standard | |
| IV Pole N/A |
Integrated in Partnership with QTAC
The GEM Ambulance was developed leveraging the combined expertise of GEM, the leader in electric low-speed vehicles, and QTAC®, the industry leader in emergency medical skids and first response equipment. This collaboration combines decades of experience in sustainable transportation and emergency response equipment to create a uniquely safe, cost-effective ambulance for localized emergency response.
Through extensive field testing and emergency service consultation, this professional-grade electric ambulance delivers proven performance for medical transport applications. The industry-leading GEM Ambulance represents the future of sustainable emergency vehicles, now certified and ready for deployment in healthcare facilities, campuses and specialized venues nationwide.
“Waev’s GEM platform opens a new market for localized, on-road emergency response with electric low-speed vehicles. Coupled with our QTAC line of EMS skids, the GEM creates a mobile emergency response solution that is highly maneuverable and able to reach areas that larger, traditional response vehicles simply can’t – all without compromising the needs of first responders.”
– Jason Black, President of QTAC
FAQ

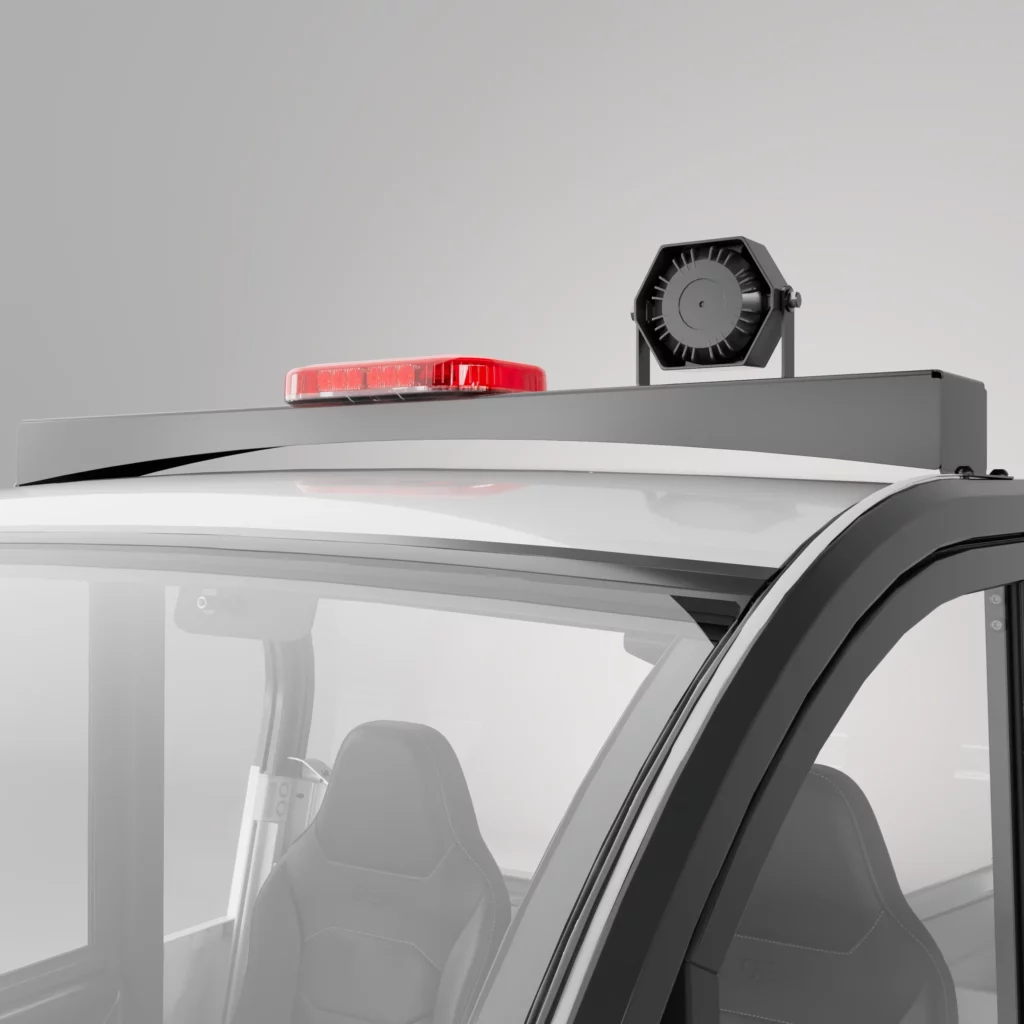

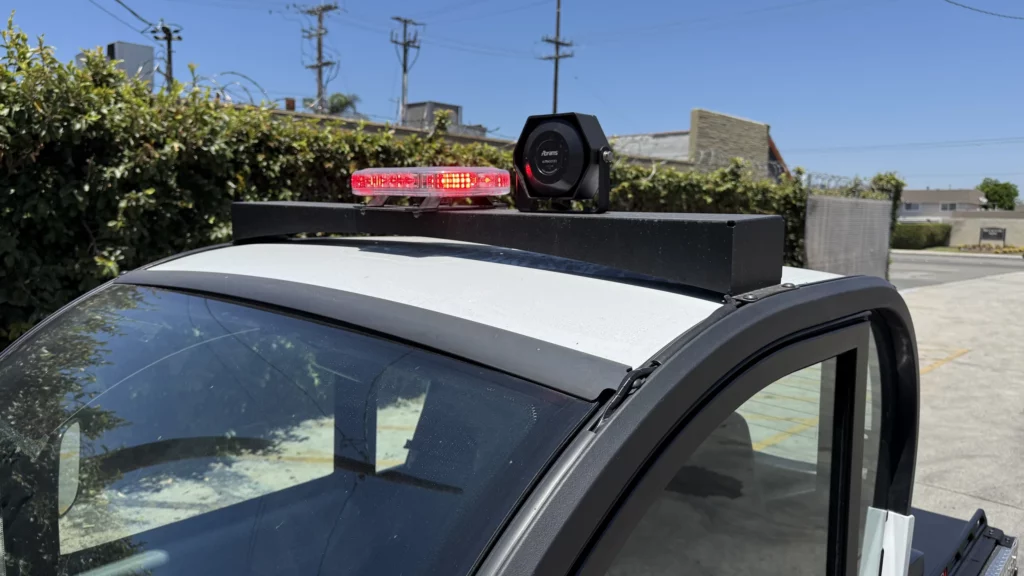

The GEM Ambulance features the Abrams RugEye 10X Series mini light bar with a default flash pattern optimized for the vehicle’s speed and size. The emergency lighting system is SAE Class 1 compliant, offers 360-degree coverage and provides waterproof protection for all weather conditions.
The GEM Ambulance includes the Abrams PA and siren system with a digital amplifier for clear, high-quality audio. The Logic Series 100W siren outputs up to 124 decibels with five selectable siren tones. The backlit handheld control for microphone and siren is within easy reach of both driver and passenger.

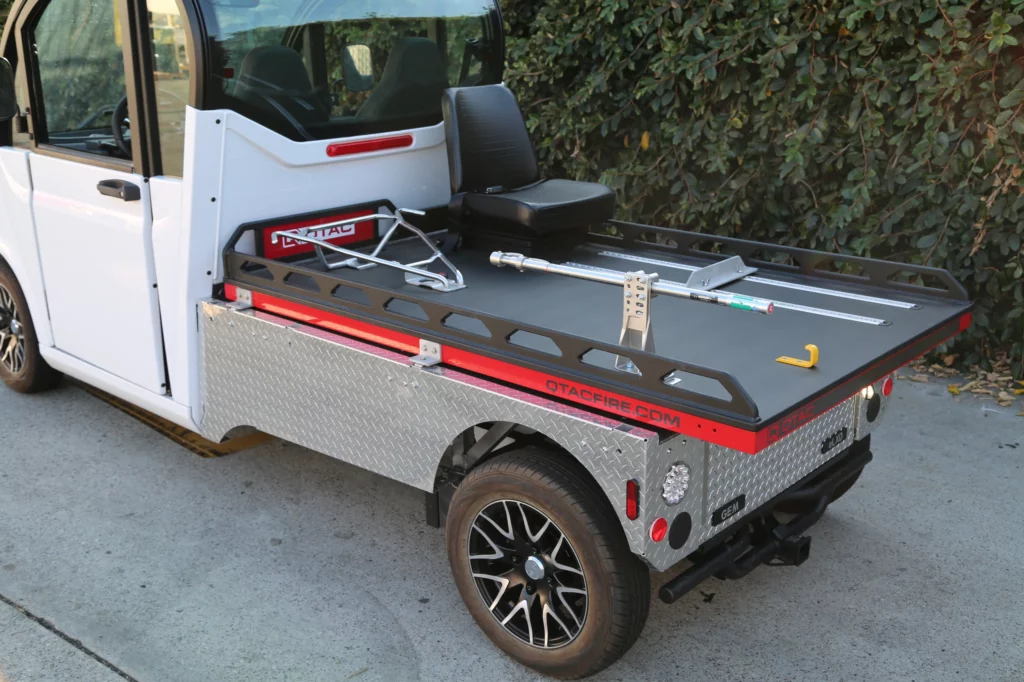

The EMS-F and EMS-R skids support stokes baskets and longboards, while the EMS-RG accommodates standard gurneys with its Gurney Mount COT system. All skids are designed for secure patient transport in emergency situations.
The factory-integrated mounting system allows for easy skid removal by unbolting from four mounting positions. The lightweight skids can be lifted by two people in minutes, providing access for battery service or converting the eL XD vehicle bed for other utility purposes.

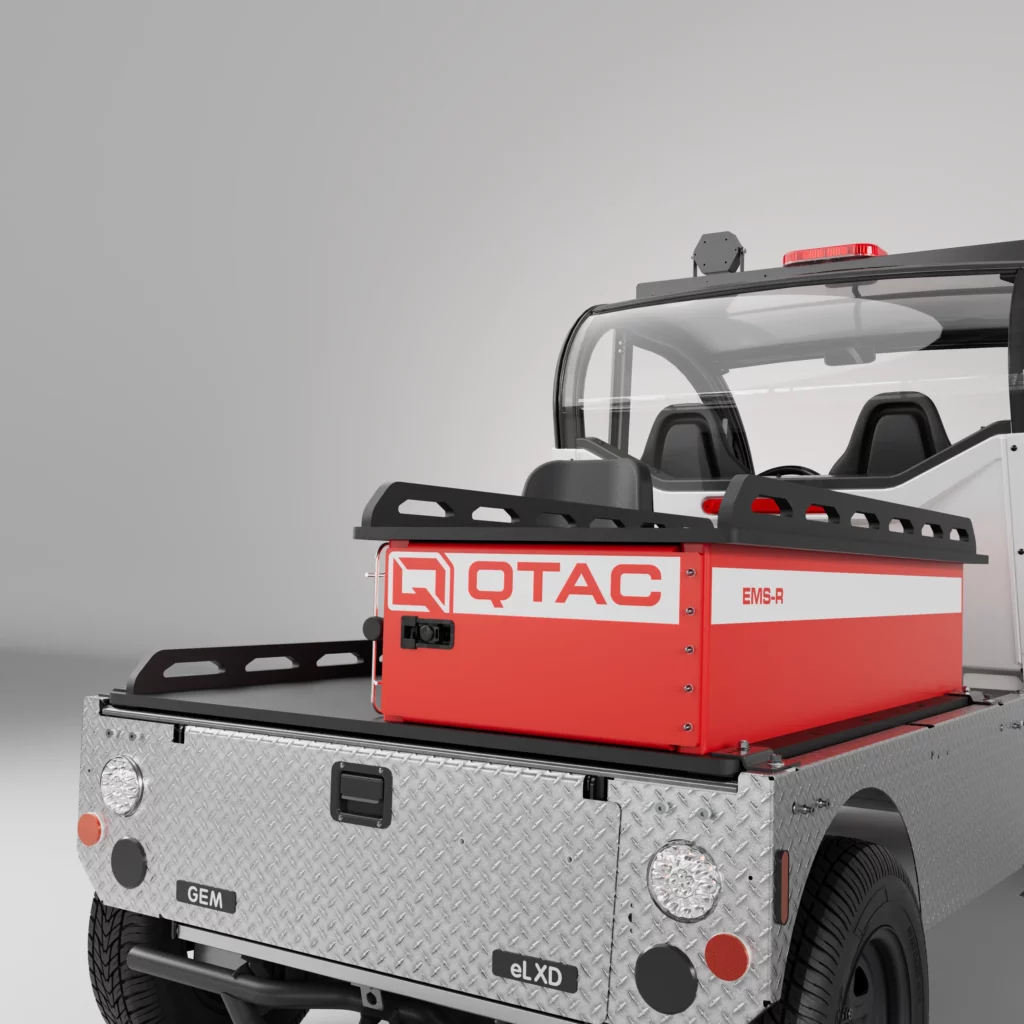

The GEM Ambulance includes storage in the recessed bed accessible through the rear tailgate, plus in-cab storage for smaller medical items. The EMS-R model features an additional roll-out drawer storage located below the stokes basket mounting position.
An integrated IV pole is available on the EMS-R model by request. Some customers prefer to install their own IV systems directly into the skid configuration.
The complete GEM Ambulance including emergency lights, PA system and siren carries a two-year warranty from registration date, matching all GEM vehicle warranties.
