GEM eL XD
GEM eL XD
Our electric utility vehicle rivals any work truck or cargo van with up to 1,415 lbs of payload, 1,250 lbs of towing, and zero tailpipe emissions.

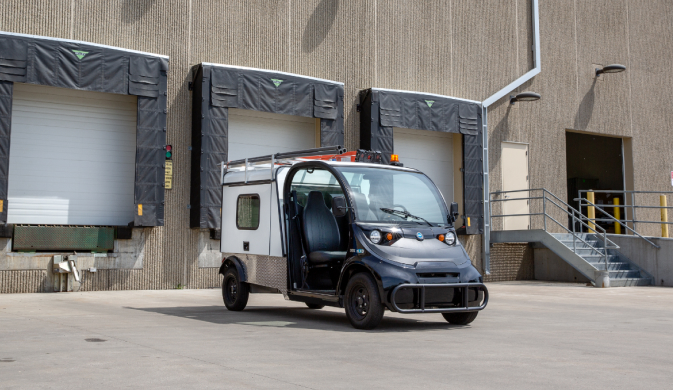

GEM eL XD EV Truck
With its sturdy build, generous ground clearance and 1,415-lb payload capacity, the GEM eL XD street legal EV truck is a sustainable workhorse. Customize your utility truck bed and rear carrier to fit your unique demands whether it’s an electric box truck or a pickup.
The 2025 GEM eL XD redefines LSV performance with more than 30 EV features for an automotive-like driving experience and a 6-ft tighter turning radius than competitor trucks for sharper turns and easier maneuvering on narrow roadways.
1-2
Seating
1,415 lbs
Payload capacity
78 mi
Range up to between charges*
22
Rear options
*GEM model, battery, payload and terrain will impact range
Comfortable
- Adjustable front bucket seats with back and side bolster for operator support and comfort.
- Experience a smooth ride on all kinds of terrain with almost 6″ of suspension travel with our battery utility vehicles.
- Seat a 6’8″ passenger comfortably in the spacious cab with 43″ of available legroom.
- Durable, non-slip flooring.
- Make effortless turns with optional electronic power steering (EPS).
- Drive confidently with adjustable tilt steering that’s easily adjusted to your preferences.
- One-pedal driving improves driver comfort and conserves battery power and the brakes.

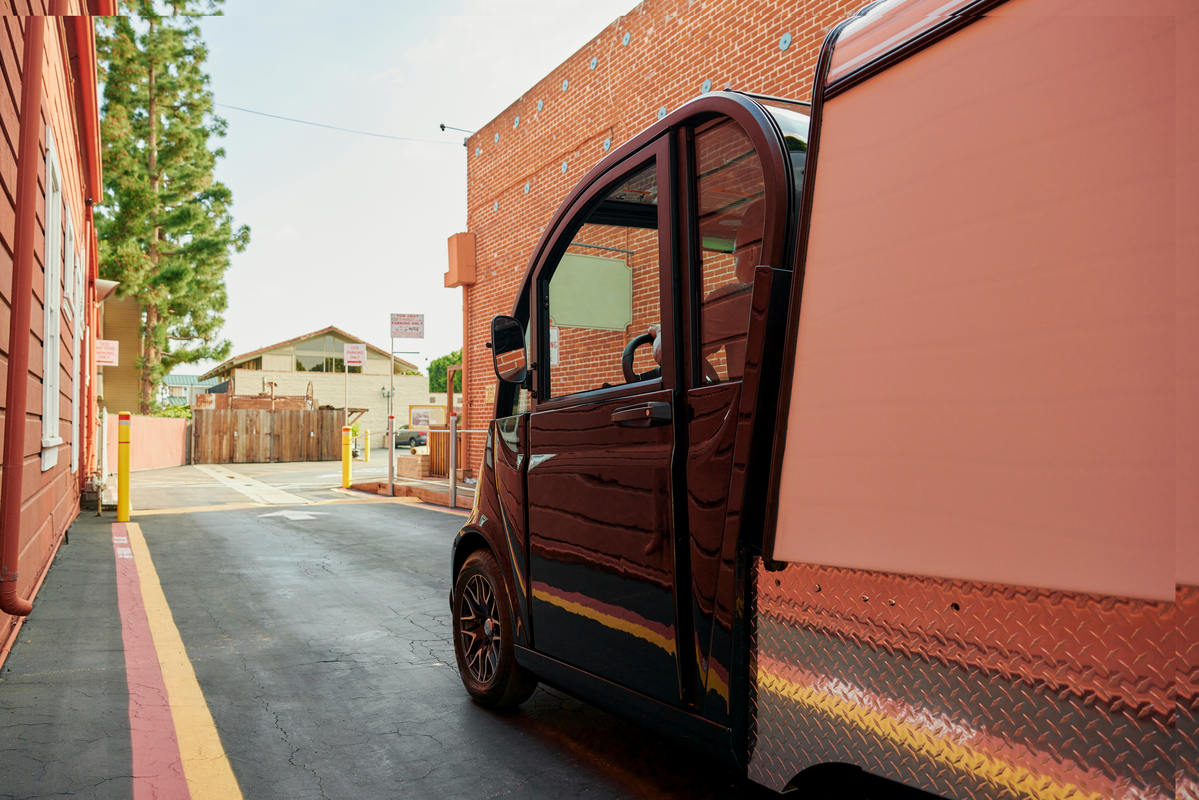

- Adventure year-round by adding doors. GEM’s door seal design and weather resistant seats are engineered for a weather-tight cab.
Safe
- GEM electric utility vehicles are street-legal on roads up to 35 mph in most states.
- Ensure street-legal security on the road with three-point seat belts.
- Travel roads confidently with DOT-compliant tires and an automotive glass windshield that offers protection from the elements.
- Alert other drivers of your next move with LED brake lights and one-touch turn signals.
- Regenerative braking, hill control, back-up warning signals and an integrated back-up camera all come standard.
- GEM vehicles feature an Occupant Protection System (OPS) that is roof crush certified to SAE J2358 Standards.
- GEM vehicles have safety features that are approved by the U.S. Department of Transportation.
Sustainable
- 100% electric powered with zero carbon emissions.
- A sustainable street-legal utility vehicle that doesn’t sacrifice quality and the task at hand.
- Choose from an array of battery options that vary by range, cost, and level of maintenance.
- 1 kW onboard charger that plugs into any 110V outlet and public EV charging stations.
- Add a solar panel for off-the-grid renewable energy charging and extended drive time between charges up to 40%.
- $0.03/mile energy costs to operate.
GEM eL XD Specs & Dimensions
Length
146 in (371 cm)
Width
55.5 in (141 cm)
Height
73 in (186 cm)
Bed
70 in (178 cm) long
48 in (122 cm) wide
Turning Radius
194 in (493 cm)
Wheelbase
114 in (290 cm)
Front Suspension
MacPherson Strut
5.6 in (14 cm) travel
Rear Suspension
Independent Trailing Arm
6 in (15 cm) travel
Wheels
Standard 13 in DOT street-rated 155/80 R13
Ground Clearance
8 in (20 cm)
Dry Weight
1,585 lbs (719 kg)
GVW
3,000 lbs (1,361 kg)
Payload Capacity
1,415 lbs (641 kg)
Rear Bed Capacity
1,100 lbs (499 kg)
Motor Size
6.5 kW/ 8.7 HP
Motor Type
Battery
Maintenance-free distance AGM or Li-ion
Top Speed
25 mph (40 kmh)
Brakes (Front/Rear)
Charger
Onboard 1kW charger standard included
Make the GEM eL XD Utility Truck Yours
With hundreds of configurations available, you can build a GEM specifically suited to your commercial fleet needs.
Exterior Options
- White or Black Body Color
- Full Doors
- Rear Window
- Rear Carrier Options
- Rear Cargo Net
- Bumper Options
- Windshield Washer
- In-windshield Defrost
- LED Headlights

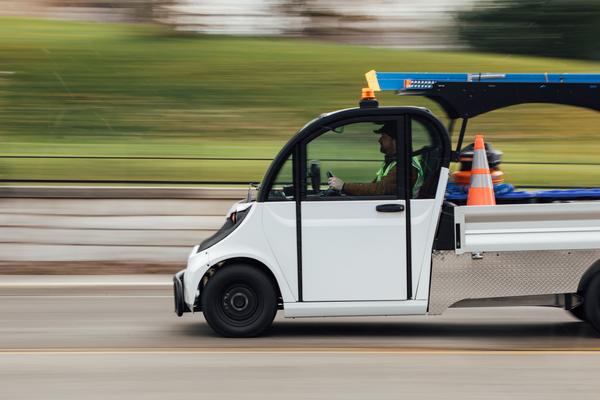

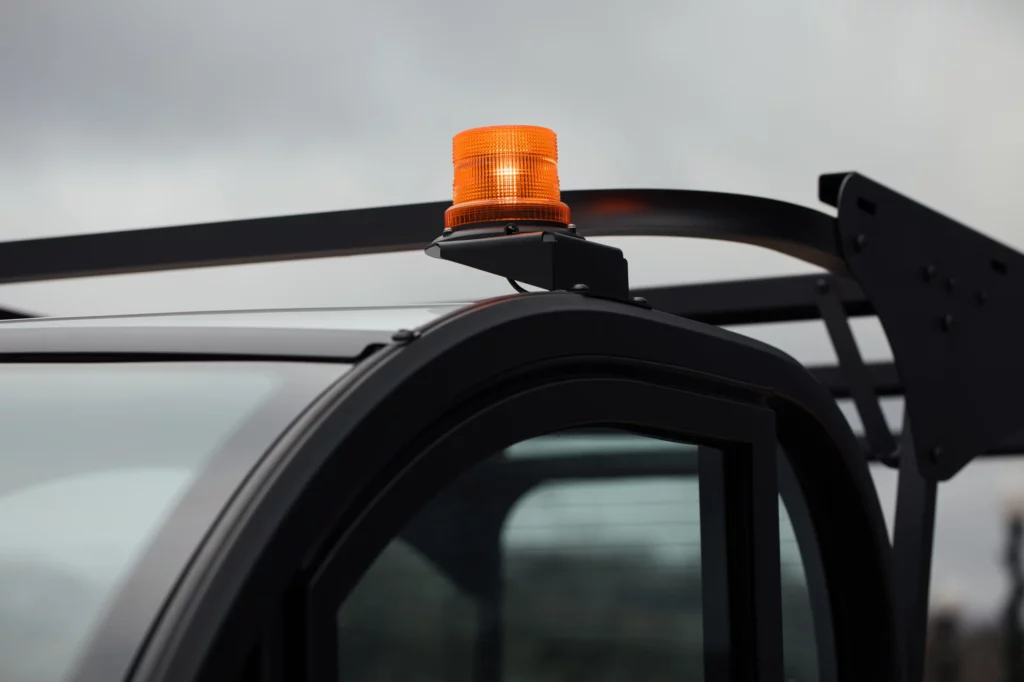

- Beacon Light
- Light Bar
Interior Options
- Heater
- Premium Upholstered Seats
- Floor Mats

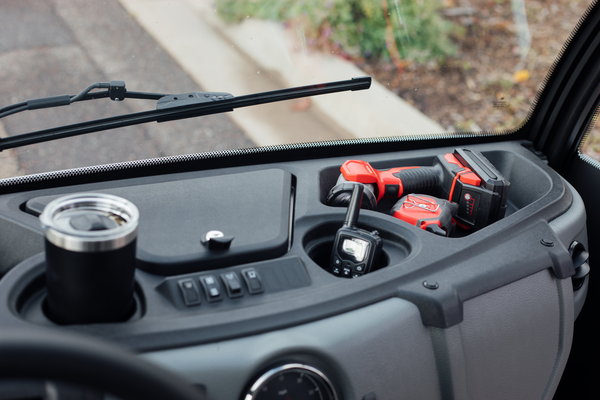

- Cupholder
- Underseat Storage
- Stereo Options

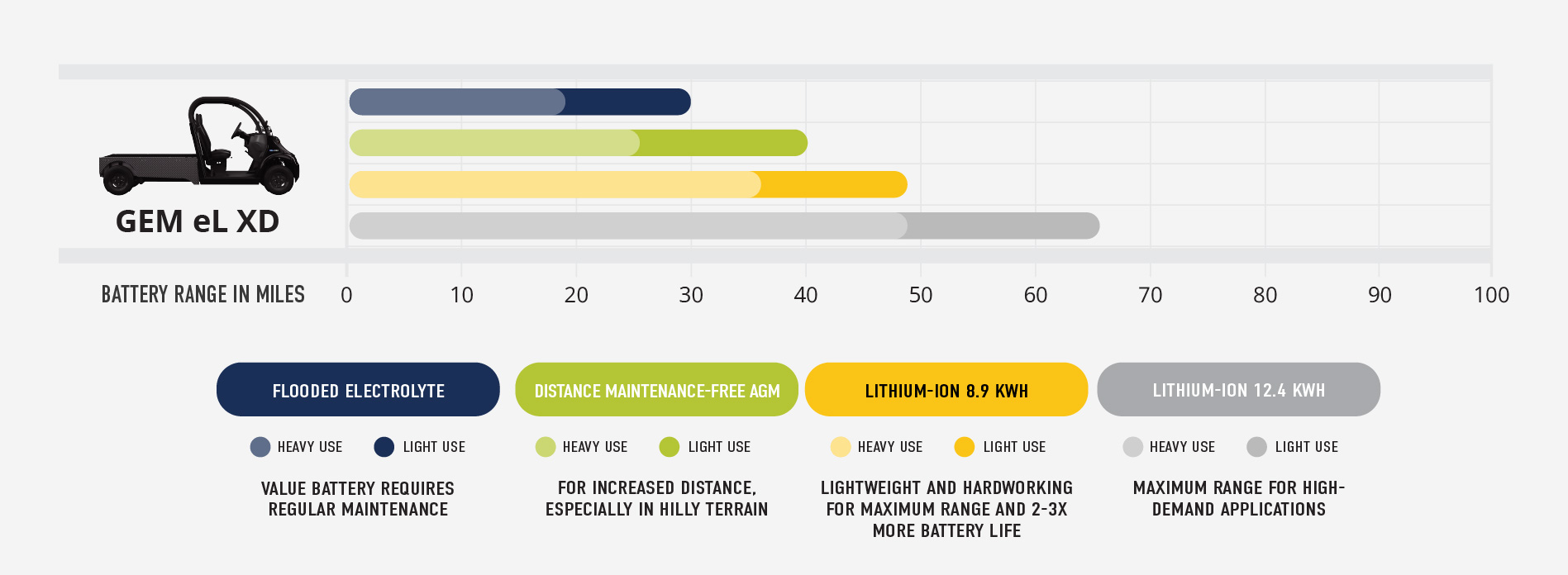

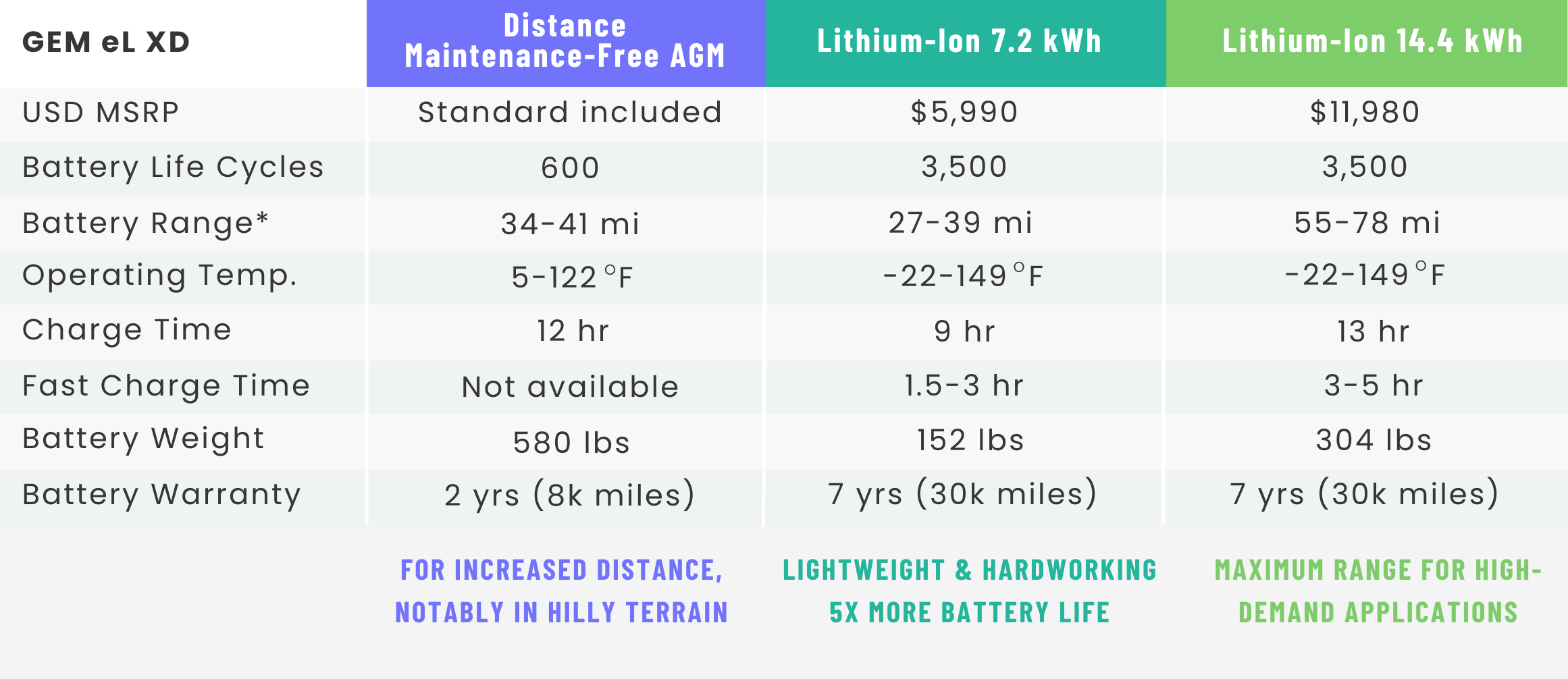

GEM eL XD Battery & Charging Options
GEM is a stress-free EV to own. From our proven AGM solutions to the latest Li-Ion and fast-charging technology, GEM offers battery and charger options for any weather, charging infrastructure or budget. All GEM vehicles come standard with maintenance-free batteries for ease of ownership. And, all GEMs can charge on a standard 110v outlet or public charging station. Simply choose between AGM, Li-Ion and our extended range options.
*Range based on typical average use. GEM model, payload, battery type, and terrain will impact range.
**Full four-year warranty with prorated 5th, 6th, and 7th years.
GEM eL XD Street-Legal Electric Utility Vehicle Packages

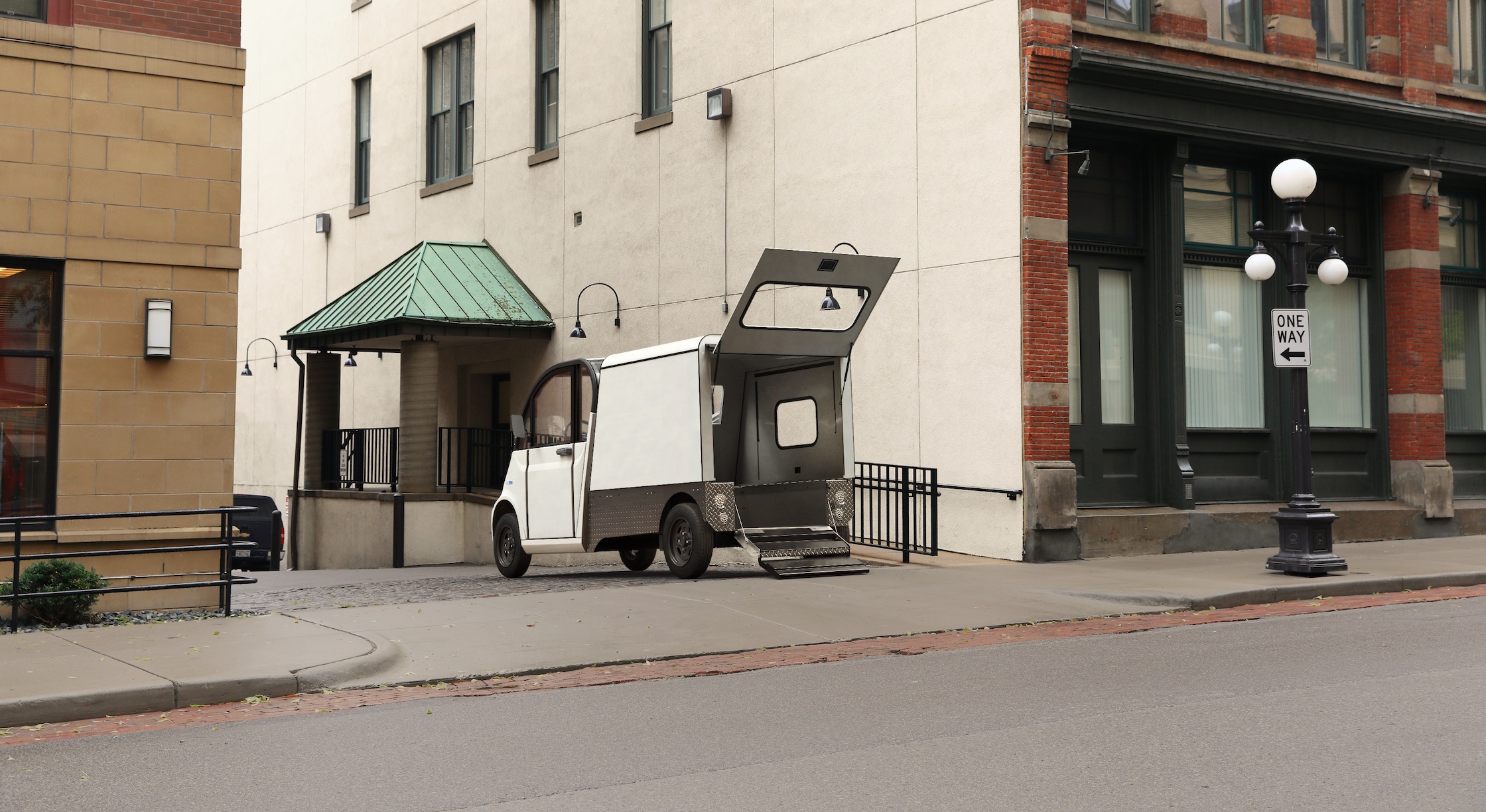

Delivery Package

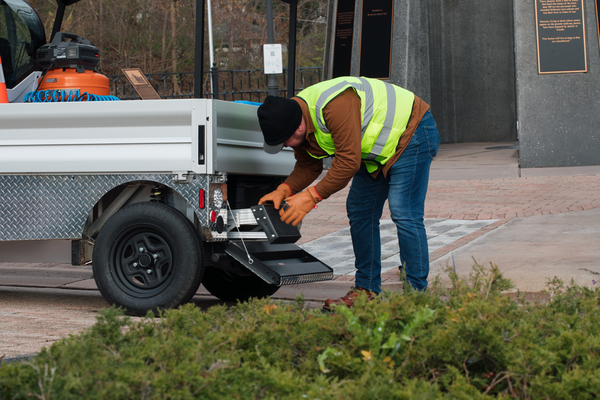

Maintenance & Repair Package

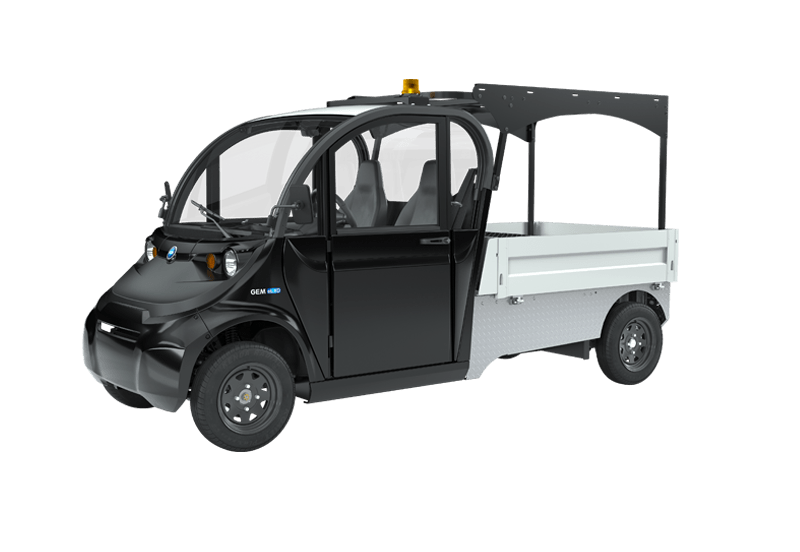

Construction Package
Durable box sides with an overhead ladder rack for hauling heavy cargo and extra equipment.
Technician Package
